Tee's-Bar Sizes ASTM-A36 Length 20'


ASTM Tensile Strength (psi) Min Yield Strength (psi)
Carbon Content
A36
58,000 - 80,000
36,000
0.26 max

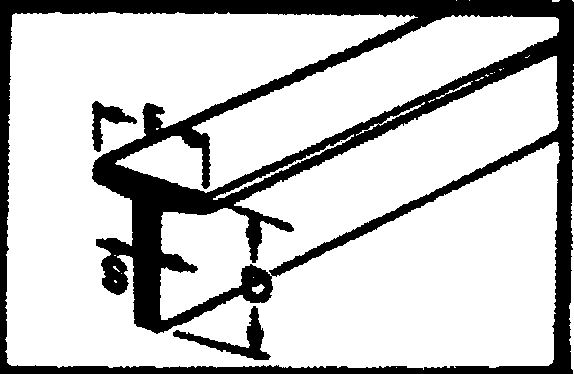

F Flange
Width
Inches
D Depth
of Tee
Inches
S Stem
Thickness
Inches
Weight, Pounds
Per
Ft.
Of 20'
Bar
3/4
3/4
1/8
0.62
12.40
1
1
1/8
0.85
17.00
1
1
3/16
1.20
24.00
1-1/4
1-1/4
1/8
1.09
21.80
1-1/4
1-1/4
3/16
1.55
31.00
1-1/4
1-1/4
1/4
1.43
38.60
1-1/2
1-1/2
3/16
1.90
38.00
1-1/2
1-1/2
1/4
2.43
48.60
1-3/4
1-3/4
3/16
2.26
45.20
1-3/4
1-3/4
1/4
2.90
58.00
2
1-1/2
1/4
3.62
72.40
2
2
1/4
3.62
72.40
2
2
5/16
4.30
86.00
2
2
3/8
4.78
95.60
2-1/2
2-1/2
5/16
5.50
110.00
2-1/2
2-1/2
3/8
6.40
128.00
